Double Glazed Sliding Doors Melbourne
Large glass panels that slide along a track, so the door opens without swinging into the room or out onto the deck.
We supply them double glazed in four aluminium series. One of them, the ML102-TB, has a thermal break, an insulating strip through the frame.
24 to 48
hours
Measured
by us
Fitted
by our team
AS 2047
and AS 1288
What Is A Double Glazed Sliding Door?

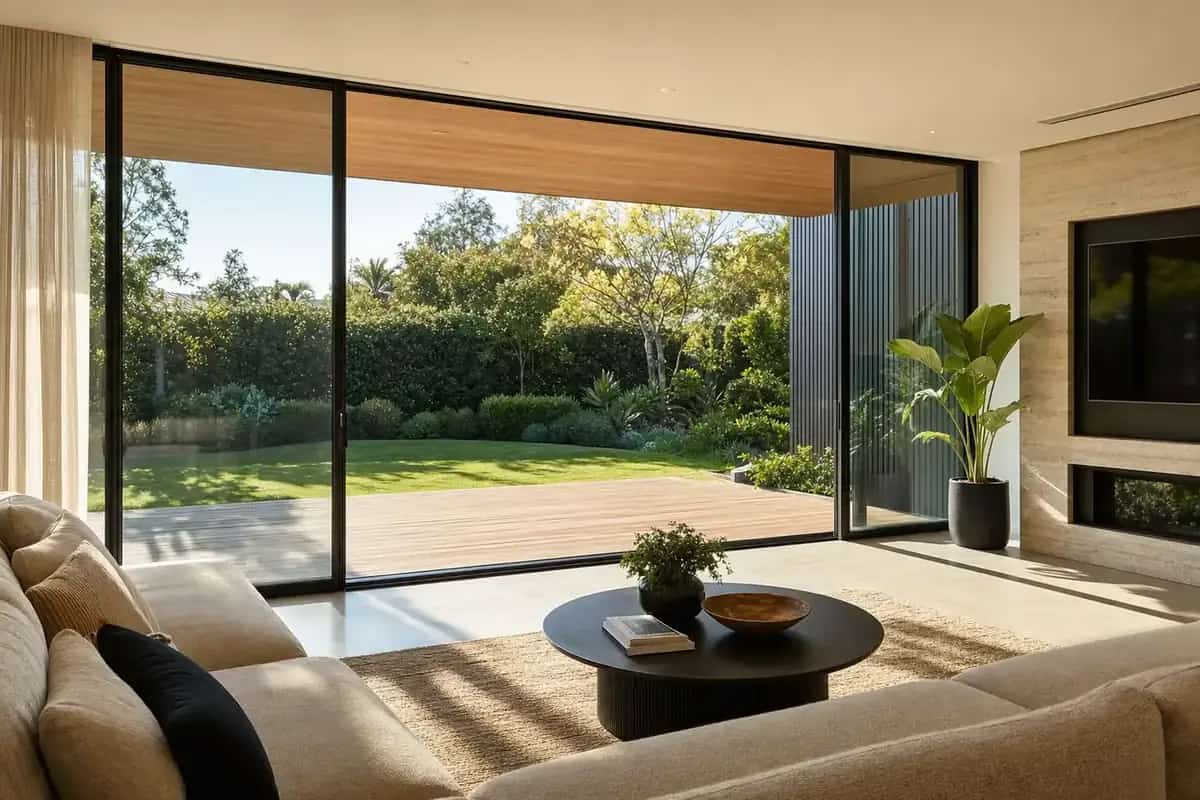

A double glazed sliding door has large glass panels that slide along a track in an aluminium frame. Each panel has two panes and a sealed gap between them. We supply them in ML86 residential, ML102 commercial, the thermally broken ML102-TB, and the ML150 narrowline, which has a slim frame around the glass. We measure and install sliding doors across Melbourne's south and east, and on the Mornington Peninsula.
Quick Facts
- We supply them in four series: ML86, ML102, ML102-TB and ML150.
- The ML102-TB has an insulating thermal break in the frame.
- HOPPE and Siegenia Aubi handles from Germany are options.
Get A Quote
Why Choose Us For Sliding Doors In Melbourne
We Measure Every Window
We come out and measure every window and door on the job ourselves. You don't need to measure anything to get a ballpark.
Our Own Team Installs Them
Our install team fits your windows and doors, usually 8 to 10 weeks after you sign off the drawings. We confirm the timing on your quote.
A Ballpark From Your Photos
Send your window and door count, your suburb and a few photos. We work out a rough price on the size of your windows in square metres.
Supplied To AS 2047 And AS 1288
Our windows are supplied to AS 2047 and AS 1288, and certification is available on request.
See How A Sliding Door Opens
Drag the slider or press the button. The top drawing is the door from inside your room, and the one under it is the same door from above.
- 01
It Runs On A Track
The sliding panel moves along a track in the aluminium frame.
- 02
One Panel Moves Past The Other
It slides sideways past the panel next to it, so part of the opening always stays glass.
- 03
Nothing Swings
The door opens without swinging into the room or out onto the deck.
Four Series Of Sliding Door
These catalogue photos show a corner of each frame cut open. Frame depth is how deep the frame is from front to back.
ML86
Residential sliding doors
The catalogue's residential range.
- Frame depth
- 86 mm
- Aluminium thickness
- 1.6 mm
- Glass
- 5 mm glass, 9 mm air gap, 5 mm glass
ML102
Commercial sliding doors and windows
The catalogue's commercial range, made as doors and windows, and it goes into homes too.
- Frame depth
- 102 mm
- Aluminium thickness
- 2.0 mm
- Glass
- 5 mm glass, 12 mm air gap, 5 mm glass (or 6 mm glass each side)
ML102-TB
Thermal break sliding doors
The frame is split by an insulating strip, so cold doesn't travel through the metal.
- Frame depth
- 102 mm
- Aluminium thickness
- 2.0 mm
- Glass
- 5 mm glass, 12 mm air gap, 5 mm glass (or 6 mm glass each side)
ML150
Narrowline sliding door
A slim frame line around the glass.
Slim frame
Thermally Broken Sliding Doors
A big sliding door has a lot of aluminium around the glass. In a plain frame that metal carries the cold outside straight through to the room side.
The ML102-TB frame is split into an outside half and an inside half, joined by an insulating strip called a thermal break. The strip stops the cold travelling through the metal into your room. Here's how thermally broken frames work.
Handles And Locks
StandardDoric Pull Handle
Comes on our sliding doors.
- Black
- Silver
- White
- Option
HOPPE Or Siegenia Aubi
Handles from two German brands, both options on our sliding doors.
OptionConcealed Lock With A Key
A lock hidden inside the frame, opened with a key.
OptionDouble-Sided Lockable Handle
Locks from inside and from outside.
Glass For A Big Door
Your Choice Of Glass
You choose the glass. Low-E glass has a thin coating that reflects heat, and argon filled glass has a heavy gas sealed in the gap between the panes. Laminated glass holds together if it breaks, acoustic glass is laminated with a layer that damps sound, and tinted glass cuts glare.
Safety Glass Where It's Needed
AS 1288, the Australian Standard for glass in buildings, sets where safety glass must go, and doors are one of those places. Laminated glass is one kind. Our guide to glass options for double glazing explains the rest.
Sliding Or Bifold?
Both open your room up to the deck or yard. The difference is how much of the opening clears, and whether the frame can have a thermal break.
Sliding Doors
Bifold Doors
- How it opens
- Sliding DoorsSlides past another panel on a track
- Bifold DoorsFolds back like a concertina
- Almost the whole opening clears
- Sliding Doors
- Bifold Doors
- Thermal break option, an insulating strip in the frame
- Sliding Doors
- Bifold Doors
- Needs room at the side when open
- Sliding DoorsNo
- Bifold DoorsYes, for the stacked panels
- Double glazed
- Sliding Doors
- Bifold Doors
- Our series
- Sliding DoorsML86, ML102, ML102-TB, ML150
- Bifold DoorsML75
Pick Sliding Doors
If a thermal break in the frame matters most. Our ML102-TB sliding door has one.
Sliding DoorsPick Bifold Doors
If you want the widest opening. Open all the way, the room and the deck become one space.
Bifold DoorsHow The Price Is Worked Out
Sliding doors are priced on their size in square metres. Send us how many doors, your suburb and a few photos for a ballpark. Our double glazing cost guide explains how the price is worked out.
Sliding doors are one of the doors we supply across Melbourne.
Panoramic Doors
Our range also has two panoramic doors, which have very large glass panels for a wide opening: the ML39 PRO and the ML32AG. Details of the ML32AG are confirmed on your quote. The ML39 PRO is double glazed with two sheets of 8 mm glass and a 22 mm gap between them.
- How much noise the ML39 PRO holds back, from its catalogue sheet
- 35 dB
- How wide the ML39 PRO frame looks from the room
- 50 mm
- Largest ML39 PRO sliding panel
- 12 m²
- Largest ML39 PRO fixed panel
- 18 m²
The Standards We Supply To
Our sliding doors are supplied to these two Australian Standards. Certification is available on request.
- AS 2047Windows and glazed doors
- AS 1288Glass in buildings, including where safety glass must go
Explore The Rest Of The Range
Double Glazed Windows
Double glazed aluminium awning, sliding and casement windows for south and east Melbourne. We measure them and our own team installs them.
Learn More
Bifold Doors
Double glazed aluminium bifold doors in the ML75 folding door series, measured by us and installed by our team across south and east Melbourne.
Learn More
Casement Windows
Double glazed aluminium casement windows in the ML102 series, with a German Siegenia Aubi handle as standard. Ballpark price within 48 hours.
Learn More
Sliding Door Questions
Is Your Sliding Door Thermally Broken?
The ML102-TB sliding door is. The ML86, ML102 and ML150 sliding doors are double glazed aluminium without a thermal break.
What Does Narrowline Mean?
A slim frame line around the glass. Our narrowline sliding door is the ML150.
Can I Lock It From Outside?
Yes, with the optional double-sided lockable sliding handle, which locks from inside and outside. A concealed lock with a key is an option too.
Ready For New Windows?
Tell us how many windows and doors you have and your suburb, and we'll send you a ballpark price.
