Double Glazed Awning Windows Melbourne
An awning window is hinged along the top and pushed out from the bottom, so it sits open like a small awning.
We supply them double glazed in aluminium, including the ML102-TB, which has a thermal break, an insulating strip through the frame. Our own team installs them.
24 to 48
hours
Measured
by us
Fitted
by our team
AS 2047
and AS 1288
What Is An Awning Window?
An awning window is hinged along its top edge and opens outwards from the bottom, usually with a winder, a small crank handle. Ours are aluminium and double glazed, in three series: ML86 residential, ML102 commercial and ML102-TB. The ML102-TB has a thermal break, an insulating strip through the frame. We measure and fit awning windows in homes across Melbourne's south and east.
Quick Facts
- We supply them in the ML86, ML102 and ML102-TB series.
- Every one opens with a manual winder as standard.
- We send a ballpark within 24 to 48 hours of your count.
Get A Quote
Why Choose Us For Awning Windows In Melbourne
We Measure Every Window
We come out and measure every window and door on the job ourselves. You don't need to measure anything to get a ballpark.
Our Own Team Installs Them
Our install team fits your windows and doors, usually 8 to 10 weeks after you sign off the drawings. We confirm the timing on your quote.
A Ballpark From Your Photos
Send your window and door count, your suburb and a few photos. We work out a rough price on the size of your windows in square metres.
Supplied To AS 2047 And AS 1288
Our windows are supplied to AS 2047 and AS 1288, and certification is available on request.
See How An Awning Window Opens
Drag the slider or press the button. The top drawing is the window from inside, and the one under it is the same window from the side.
A winder is easy to turn from behind a kitchen bench or across a bath. Pushing a sliding window open there would mean leaning right over.
- 01
Hinged Along The Top
The hinge runs along the top of the frame.
- 02
Turn The Winder
The bottom of the window swings out as you turn it, and the top edge stays held in the frame.
- 03
It Leans Out Like An Awning
When it's open, the glass leans out over the gap like an awning over a shop door, which is where the name comes from.
Three Series Of Awning Window

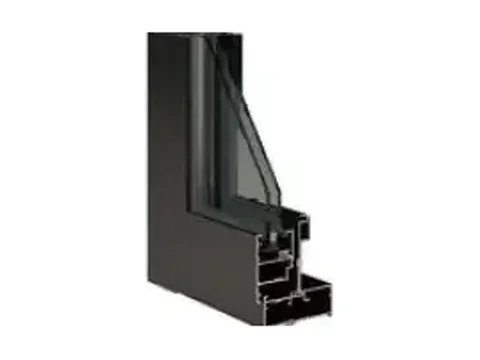

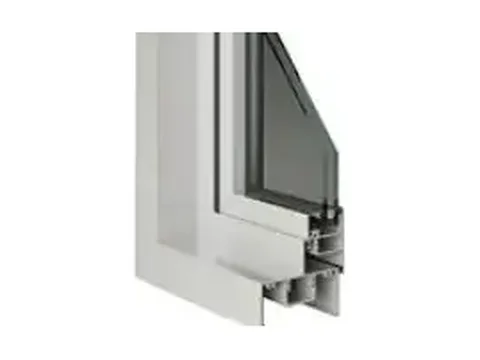

These catalogue photos show a corner of each frame cut open. Frame depth is how deep the frame is from front to back. If you want the thermal break, say so in the notes box on the quote form, and your ballpark will be for the right one.
ML86
Residential awning windows
The catalogue's residential range.
- Frame depth
- 86 mm
- Aluminium thickness
- 1.6 mm
- Glass
- 5 mm glass, 9 mm air gap, 5 mm glass
ML102
Commercial awning windows
The catalogue's commercial range, which goes into homes too.
- Frame depth
- 102 mm
- Aluminium thickness
- 2.0 mm
- Glass
- 5 mm glass, 12 mm air gap, 5 mm glass (or 6 mm glass each side)
ML102-TB
Thermal break awning windows
The only thermally broken window in our range.
- Frame depth
- 102 mm
- Aluminium thickness
- 1.8 mm
- Glass
- 5 mm glass, 12 mm air gap, 5 mm glass (or 6 mm glass each side)
Winder, Glass And Fly Screens
StandardDoric Manual Winder
A small crank handle you turn to push an awning window out.
- Black
- White
- Silver
Your Choice Of Glass
You choose the glass. Low-E glass has a thin coating that reflects heat, and argon filled glass has a heavy gas sealed in the gap between the panes. Laminated glass holds together if it breaks, acoustic glass is laminated with a layer that damps sound, and tinted glass cuts glare. Our guide to glass options for double glazing explains each one.
Stainless Steel Fly Screens
Our fly screens are stainless steel mesh, stronger than standard fly screen mesh.
How The Price Is Worked Out
Awning windows are priced like the rest of our windows, on their size in square metres. Send your count, your suburb and a few photos, and you get a ballpark. Our double glazing cost guide explains how the price is worked out.
Awning windows are one of three types of double glazed windows we supply in Melbourne.
Explore The Rest Of The Range
Double Glazed Windows
Double glazed aluminium awning, sliding and casement windows for south and east Melbourne. We measure them and our own team installs them.
Learn More
Bifold Doors
Double glazed aluminium bifold doors in the ML75 folding door series, measured by us and installed by our team across south and east Melbourne.
Learn More
Sliding Doors
Double glazed aluminium sliding doors in Melbourne, including the thermally broken ML102-TB and the slim ML150 narrowline. Ballpark in 48 hours.
Learn More
Awning Window Questions
Are Your Awning Windows Thermally Broken?
The ML102-TB awning window is. The ML86 and ML102 awning windows are double glazed aluminium without a thermal break.
How Do I Open An Awning Window?
With the winder, a small crank handle. Ours come with a Doric manual window winder as standard, in black, white or silver.
What Does An Awning Window Cost?
We price windows on their size in square metres. Thermally broken windows, which include our ML102-TB awning windows, are about $600 a square metre, and the final price is confirmed on your quote after we measure.
Ready For New Windows?
Tell us how many windows and doors you have and your suburb, and we'll send you a ballpark price.
